Garage Equipment Auto Maintenance Truck Tyre Wheel Balancer

XP-598

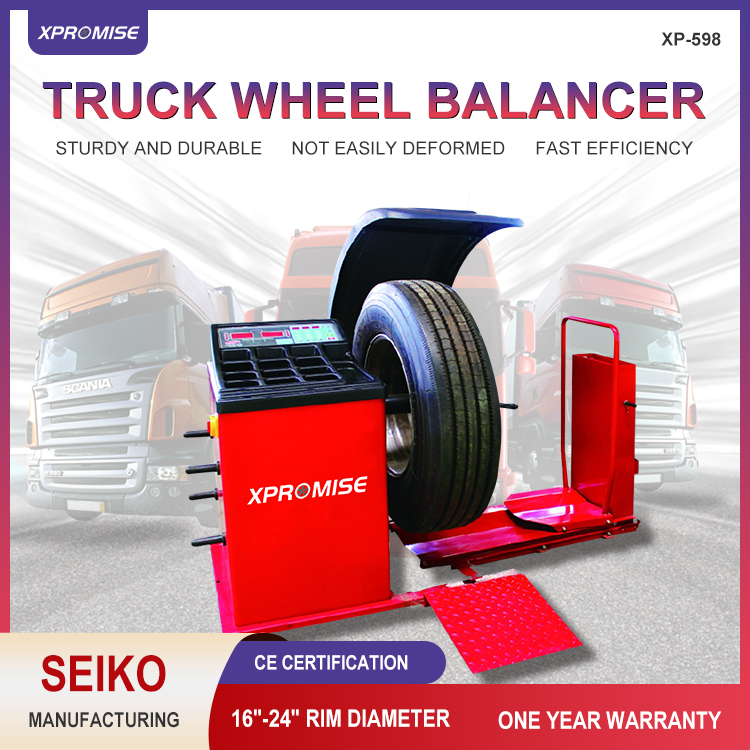

TRUCK WHEEL BALANCER

SPECIFICATIONECIFICAT

Rim diameter: 16"-24"

Rim width :5.7-20"

Max.wheel weight:200kg

Max.wheel width:1250mm

Air pressure:8-10bar

Testing time:12-20s

Protection cover:supplied

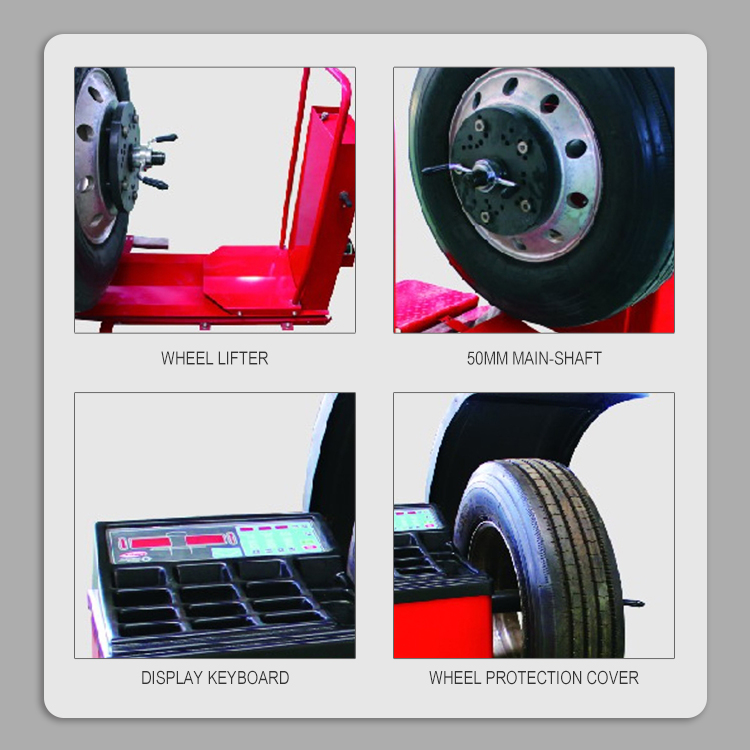

Pneumatic built-in lift:supplied

Power:220/400V

Machine weight:300kg

Gross Weight: 370kg

Outside Dimension LxWxH :1340x 940 x 1180mm

Overall dimensions :2000x1500mm

FEATURES

1.Keypad control panel with bright LED displays indicate 2 weight amounts2 weight locations.

2.3D rim dimension data entry and 3 selection balance mode.

3.Precise wheel clamping system flange,easy and fast to fix the wheel on the measuringbalanceaxle.

4.Safety setting: the equipment is equipped with a micro-switch, the wheel cover falls to a certain position, and the motor starts to start.

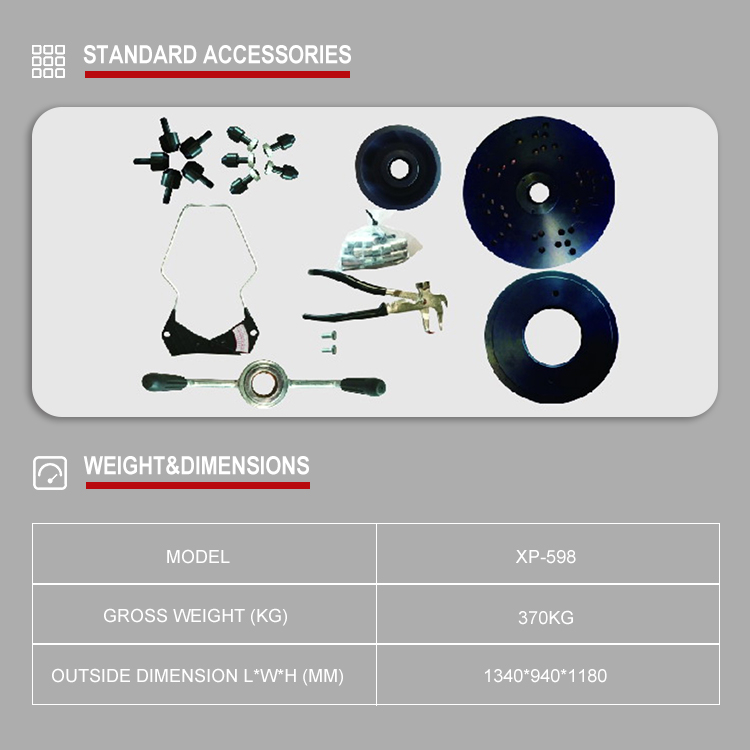

4.Standard accessories ( supplied ): International universal standard standard flange tapering(diameter range 40-285mm),

wheel width calipers,lock nut, wheel ballast weight pliers.
